Case Study: SHACMAN TERRA TK1004 Knuckle Boom Crane
TERRA TK1004
Thailand
Self-installation
July 17, 2026
Machine Information
Machine Type: Off-road Truck-mounted Knuckle Boom Crane
Core Parameters: Max Lifting Capacity 10ton, Max Working Radius 12m, 4-section Knuckle Boom, 6x6 Off-road Chassis
Working Condition: Off-road construction, mountainous area operation, heavy cargo handling in harsh terrain
Application Scenarios: Mining equipment maintenance, mountain road construction, forestry handling, heavy equipment installation in remote areas, emergency rescue in complex terrain
Core Parameters: Max Lifting Capacity 10ton, Max Working Radius 12m, 4-section Knuckle Boom, 6x6 Off-road Chassis
Working Condition: Off-road construction, mountainous area operation, heavy cargo handling in harsh terrain
Application Scenarios: Mining equipment maintenance, mountain road construction, forestry handling, heavy equipment installation in remote areas, emergency rescue in complex terrain
Before: Pain Points
1. Large visual blind spots in cab operation, especially in mountainous and complex terrain, the status of the far end of the boom and outriggers cannot be clearly observed
2. Ground command personnel are required for the whole process of lifting operation, a single operator cannot complete precise positioning and outrigger leveling alone
3. It is difficult to control multi-action coordination in the bumpy off-road cab, and operation errors are prone to occur
4. The original wired control has limited operating distance, and the optimal viewing position cannot be flexibly selected to observe the load and site conditions5. Poor fluency of multi-section knuckle boom coordination in complex off-road conditions, resulting in low lifting efficiency and potential safety hazards
2. Ground command personnel are required for the whole process of lifting operation, a single operator cannot complete precise positioning and outrigger leveling alone
3. It is difficult to control multi-action coordination in the bumpy off-road cab, and operation errors are prone to occur
4. The original wired control has limited operating distance, and the optimal viewing position cannot be flexibly selected to observe the load and site conditions5. Poor fluency of multi-section knuckle boom coordination in complex off-road conditions, resulting in low lifting efficiency and potential safety hazards
Installation Solution

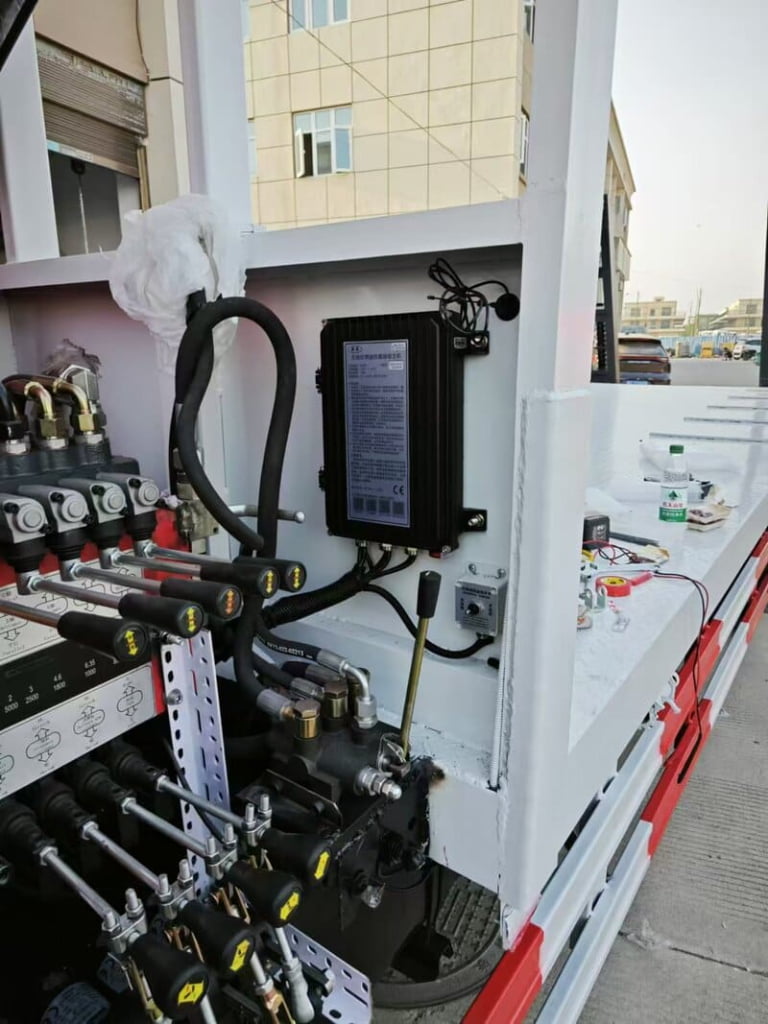

1. Receiver Installation: The industrial wireless receiver is fixed in the hydraulic valve compartment of the truck chassis, with IP67 waterproof and dustproof protection, adapting to harsh off-road and mountainous working conditions
2. Wiring Scheme: One-to-one matching with the control signal interface of the original hydraulic multi-way valve, wire-free non-destructive installation, without damaging the original hydraulic system, safety logic and off-road control system of the truck

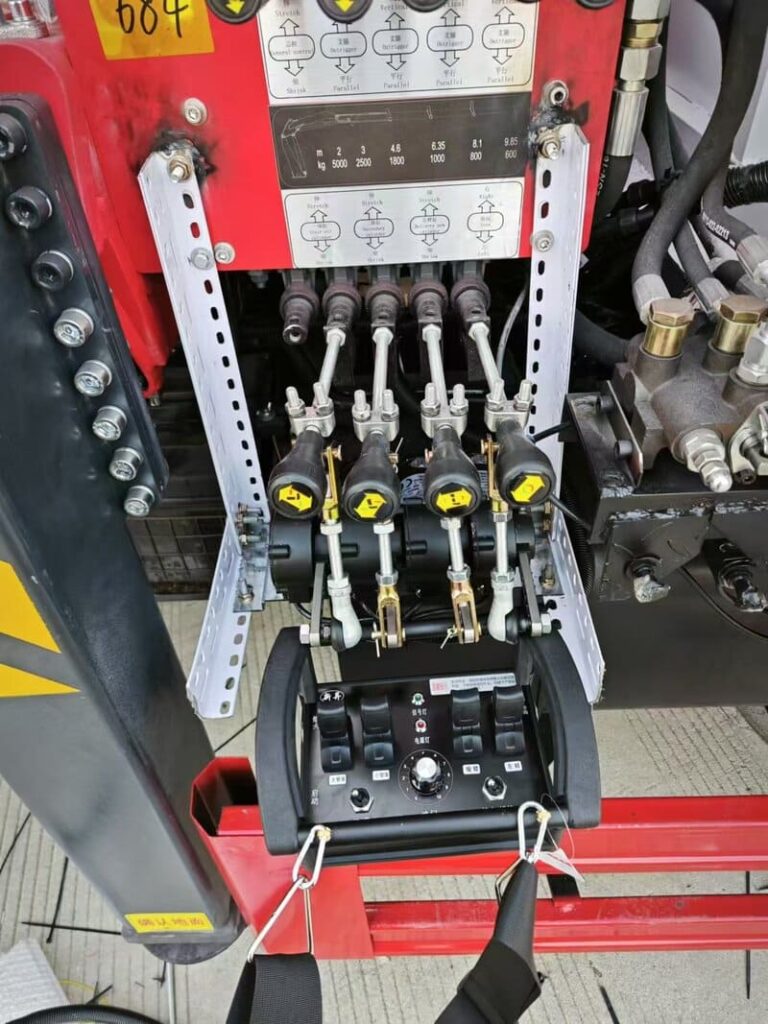

3. Remote Controller Configuration: Customized industrial proportional joystick remote controller, with preset action logic matching the original hydraulic flow curve, adapting to single-hand operation in complex terrain, with anti-slip and shockproof design
4. On-site Debugging: Calibrate joystick stroke and hydraulic action speed, match the original emergency stop safety function and outrigger interlock protection, test the stability and anti-interference ability of wireless signal transmission over 150m in mountainous areas, and fully adapt to the original safety protection mechanism of the truck
2. Wiring Scheme: One-to-one matching with the control signal interface of the original hydraulic multi-way valve, wire-free non-destructive installation, without damaging the original hydraulic system, safety logic and off-road control system of the truck
3. Remote Controller Configuration: Customized industrial proportional joystick remote controller, with preset action logic matching the original hydraulic flow curve, adapting to single-hand operation in complex terrain, with anti-slip and shockproof design
4. On-site Debugging: Calibrate joystick stroke and hydraulic action speed, match the original emergency stop safety function and outrigger interlock protection, test the stability and anti-interference ability of wireless signal transmission over 150m in mountainous areas, and fully adapt to the original safety protection mechanism of the truck
Control Configuration
8 Joystick
Control Channels
Yes
Proportional Control
Yes
Electronic Throttle
Yes
Manual Mode Retained
Controlled Movements
1. Main Boom Lift / Lower
2. Knuckle Boom Fold / Unfold
3. Slewing Left / Right
4. Main Hoist Up / Down
5. Auxiliary Hoist Up / Down
6. Outrigger Extend / Retract (Front/Rear Independent)
7. Engine Throttle
8. Chassis Travel Forward / Backward
2. Knuckle Boom Fold / Unfold
3. Slewing Left / Right
4. Main Hoist Up / Down
5. Auxiliary Hoist Up / Down
6. Outrigger Extend / Retract (Front/Rear Independent)
7. Engine Throttle
8. Chassis Travel Forward / Backward
Result
1. Safety Improvement: Operators can complete the whole process control in a safe area with a clear view, away from the risks of cab operation in bumpy off-road terrain, and completely avoid safety hazards caused by visual blind spots
2. Efficiency Improvement: A single operator can complete the full lifting workflow independently without ground command cooperation, the overall work efficiency is improved by more than 35% in mountainous and off-road working conditions
3. Labor Saving: Reduce 1-2 ground command personnel, greatly reduce labor and management costs in remote construction sites
4. Customer Feedback: The remote controller is precise and smooth in operation, stable in signal and anti-interference in mountainous areas, adapts to harsh off-road working environments, the modification scheme does not affect the original vehicle warranty and off-road performance, and is highly recognized by customers
2. Efficiency Improvement: A single operator can complete the full lifting workflow independently without ground command cooperation, the overall work efficiency is improved by more than 35% in mountainous and off-road working conditions
3. Labor Saving: Reduce 1-2 ground command personnel, greatly reduce labor and management costs in remote construction sites
4. Customer Feedback: The remote controller is precise and smooth in operation, stable in signal and anti-interference in mountainous areas, adapts to harsh off-road working environments, the modification scheme does not affect the original vehicle warranty and off-road performance, and is highly recognized by customers
Perfect Fit for SHACMAN TERRA TK1004 Off-road Knuckle Boom Crane
This custom wireless remote control upgrade is designed specifically for your SHACMAN TERRA TK1004 10-ton off-road knuckle boom crane, delivering seamless integration with the original hydraulic system and off-road control system, no damage to the original vehicle warranty.
Clear View, Zero Operation Risks in Harsh Terrain
Eliminate cab blind spots and bumpy operation risks entirely. Operate your crane safely from the ground, with a full view of the boom, outriggers and load for precise, error-free lifting in mountainous and off-road conditions.
Single-Person Operation, 35%+ Faster Work
Cut out the need for ground command staff. One operator can handle the full lifting workflow independently, slashing labor costs and boosting overall job efficiency by over 35% in remote construction sites.
Universal Fit & Rugged Build
Works with all major brands of off-road truck-mounted knuckle boom cranes, with IP67 waterproof and dustproof design that stands up to harsh outdoor, mountainous and mining working conditions.
